Motor Core Dies Manufacturers,Wholesale Motor Core Dies

Motor core stamping die punch tungsten carbide parts

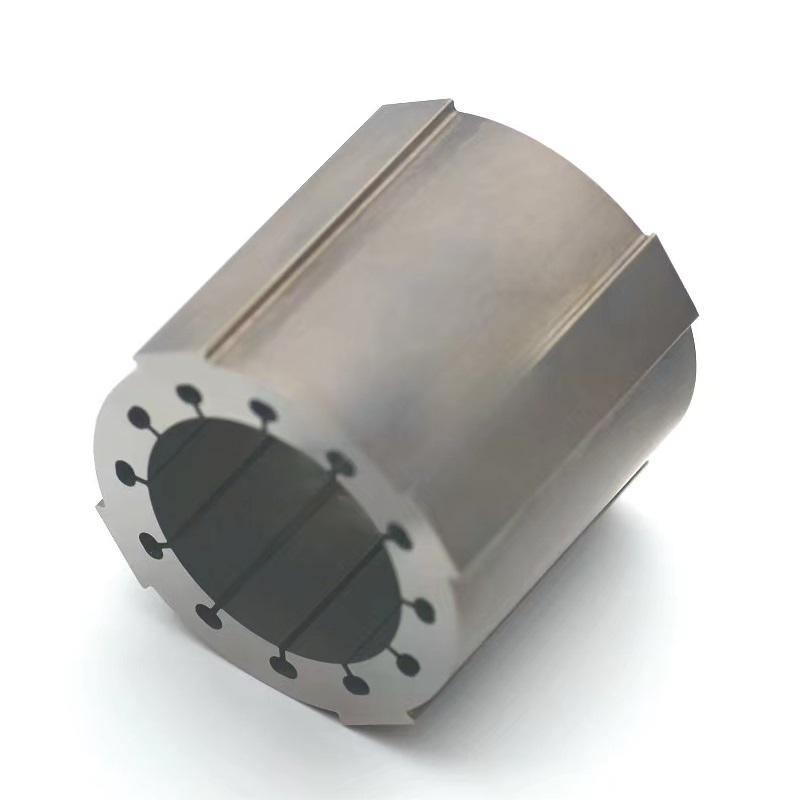

In motor core dies for the manufacturing of motor stator and rotor laminations, punches play a crucial role in creating precise and accurate holes and shapes in the laminations. Customized punch designs may include round punches, rectangular punches, or specialized shapes according to the motor core design specifications.

view detail

Motor core stamping die with Wire EDM

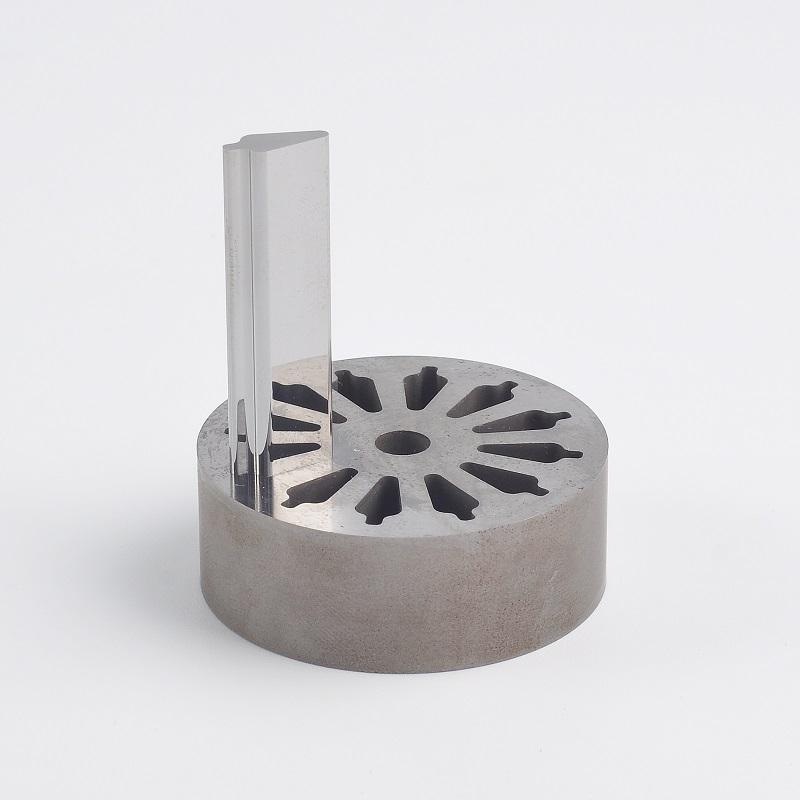

Motor mold components are typically made from tungsten carbide or high-strength tool steels to withstand the rigorous stamping process. The molds are designed with precision to accommodate the specific motor component requirements, including tolerances, surface finishes, and part geometries.

view detail

Motor core laminated stamping die parts

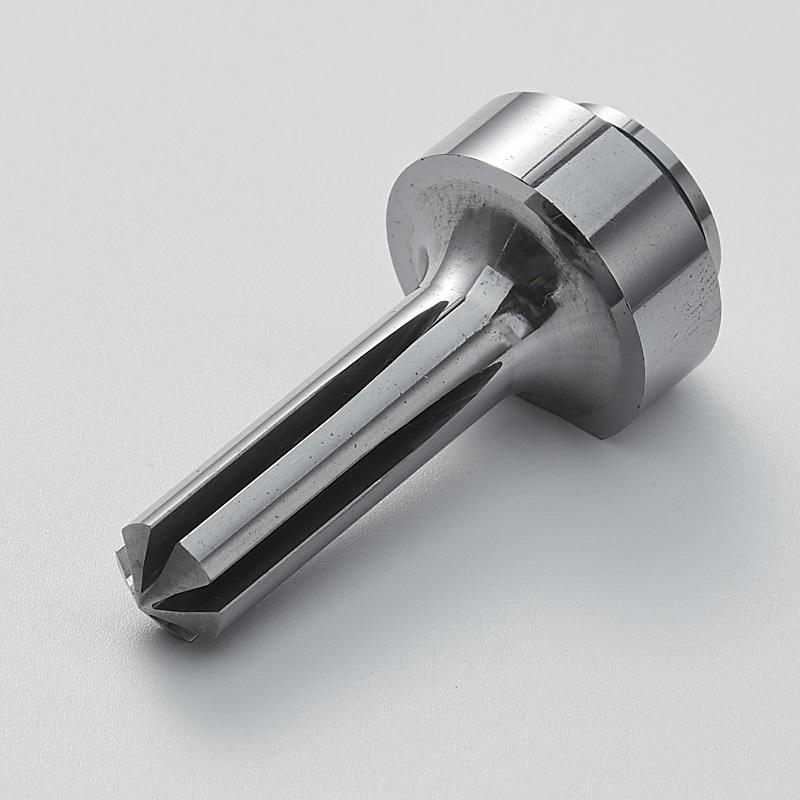

Motor core dies are designed and manufactured using advanced machining techniques and high-quality materials to meet stringent tolerance requirements and withstand the demanding conditions of the molding process.

view detail

Motor Core Stamping Die parts punches and dies with wire EDM

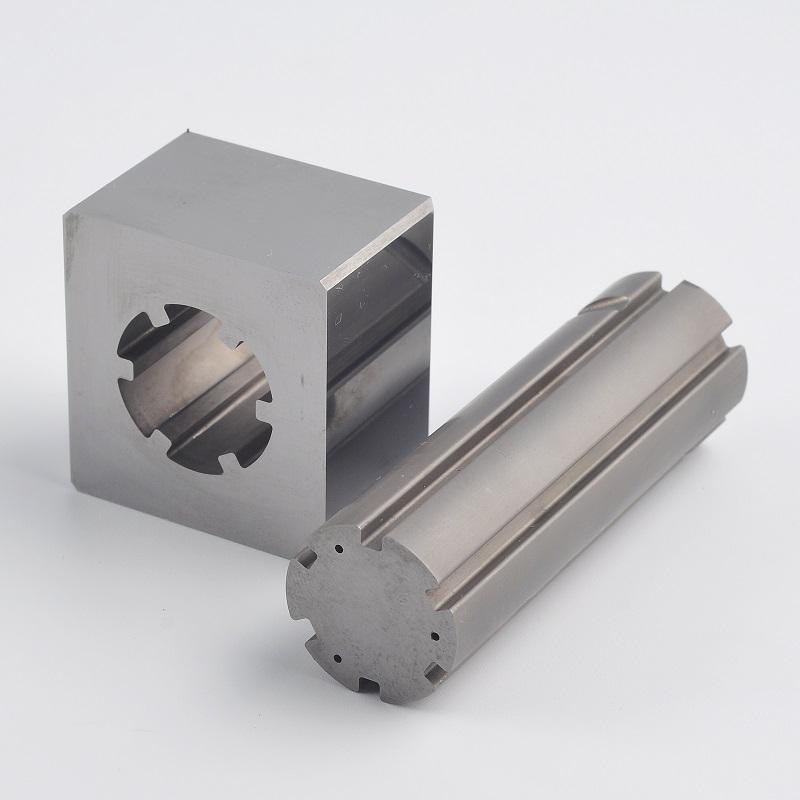

The punches and die is critical to achieving accurate and consistent lamination shapes. The punches are customized according to the specific motor core design, including the number of slots, their dimensions, and any additional features required. The die is designed to match the punches and ensure precise alignment during the punching process.

view detail

Motor Rotor Stator Lamination Core Stamping Die Tool Mold

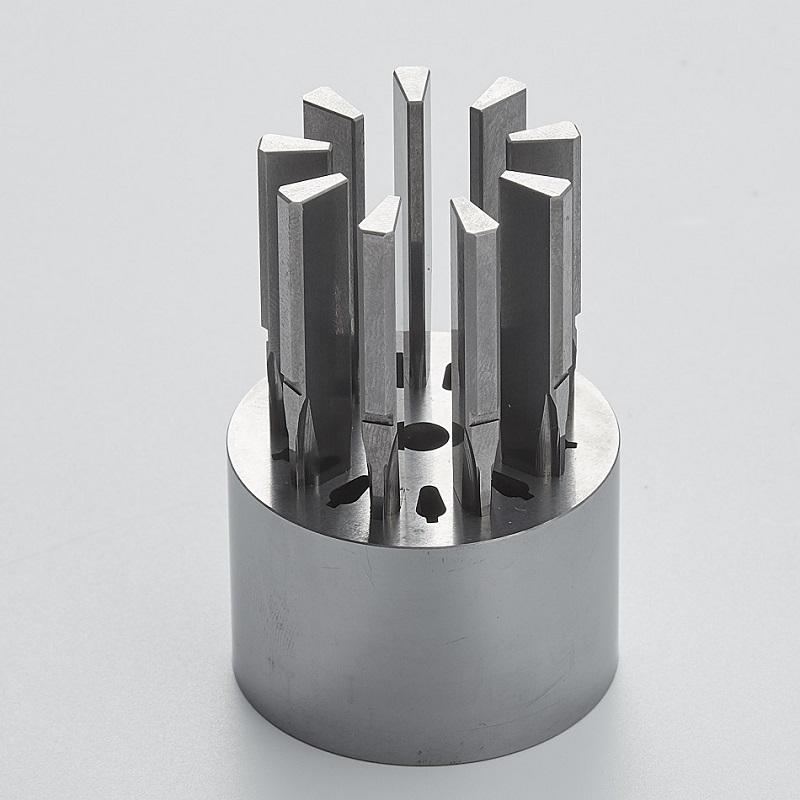

Punches and die are key components in motor core molds, facilitating the precise shaping and forming of laminations. They are made from tungsten carbide or high-quality steels and feature customized designs to meet the specific requirements of the motor core.

view detail

custom dies motor core stamping parts

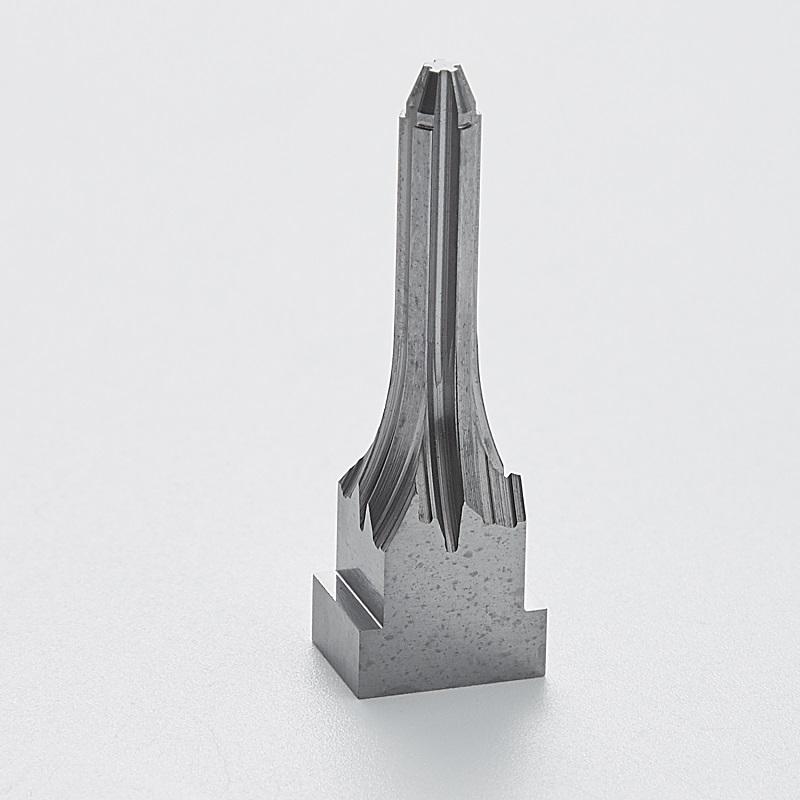

The punch and die need precision machining to achieve the final dimensions and surface finish. This may involve processes such as grinding, EDM (Electrical Discharge Machining), or wire cutting to create intricate features and precise contours on the parts.Quality control measures are essential to ensure the dimensional accuracy and functionality of the components. This includes inspection and measurement techniques such as coordinate measuring machines (CMM) or optical measurement systems, as well as the use of precision gauges and inspection tools.
