Precision Enhancement in Wire EDM for Tungsten Carbide Parts

Tungsten carbide mold parts are critical for high-precision manufacturing, yet their high hardness and brittleness make precision control in Wire EDM a tough challenge. Even micro-deviations can ruin mold performance and lifespan.

Core Equipment & Wire Setup

• Wire selection: Zinc-coated brass wires (balanced precision) or molybdenum wires (ultra-precision thin cuts); replace every 8–12h to avoid wear-induced errors.

• Tension calibration: 12–18N for 0.25mm wires, 8–12N for 0.15–0.2mm wires; daily laser alignment for wire straightness to eliminate vibration.

• Machine calibration: Regularly check linear axes and wire guides, ensure ±0.001mm repeatability and level worktable to prevent taper errors.

Precision-Oriented Process Parameter Tuning

• Pulse settings: Low energy for finishing (Ton:2–5μs, Ip:2–5A, Toff:5–15μs) to reduce thermal damage; avoid high energy to prevent micro-cracks.

• Flushing optimization: 8–15MPa dielectric pressure (lower for finishing), 20–25°C fluid temperature; align nozzles to discharge gap, use dual nozzles for complex geometries.

• Multi-pass strategy: 3 passes (roughing:80–90% material removal; semi-finishing:0.1–0.2mm to eliminate HAZ; finishing:0.02–0.05mm for final precision); add skim pass for ±0.001mm tolerance.

Workpiece Fixturing & Preparation

• Use high-precision fixtures (±0.001mm repeatability), avoid over-clamping to prevent residual stress and deformation.

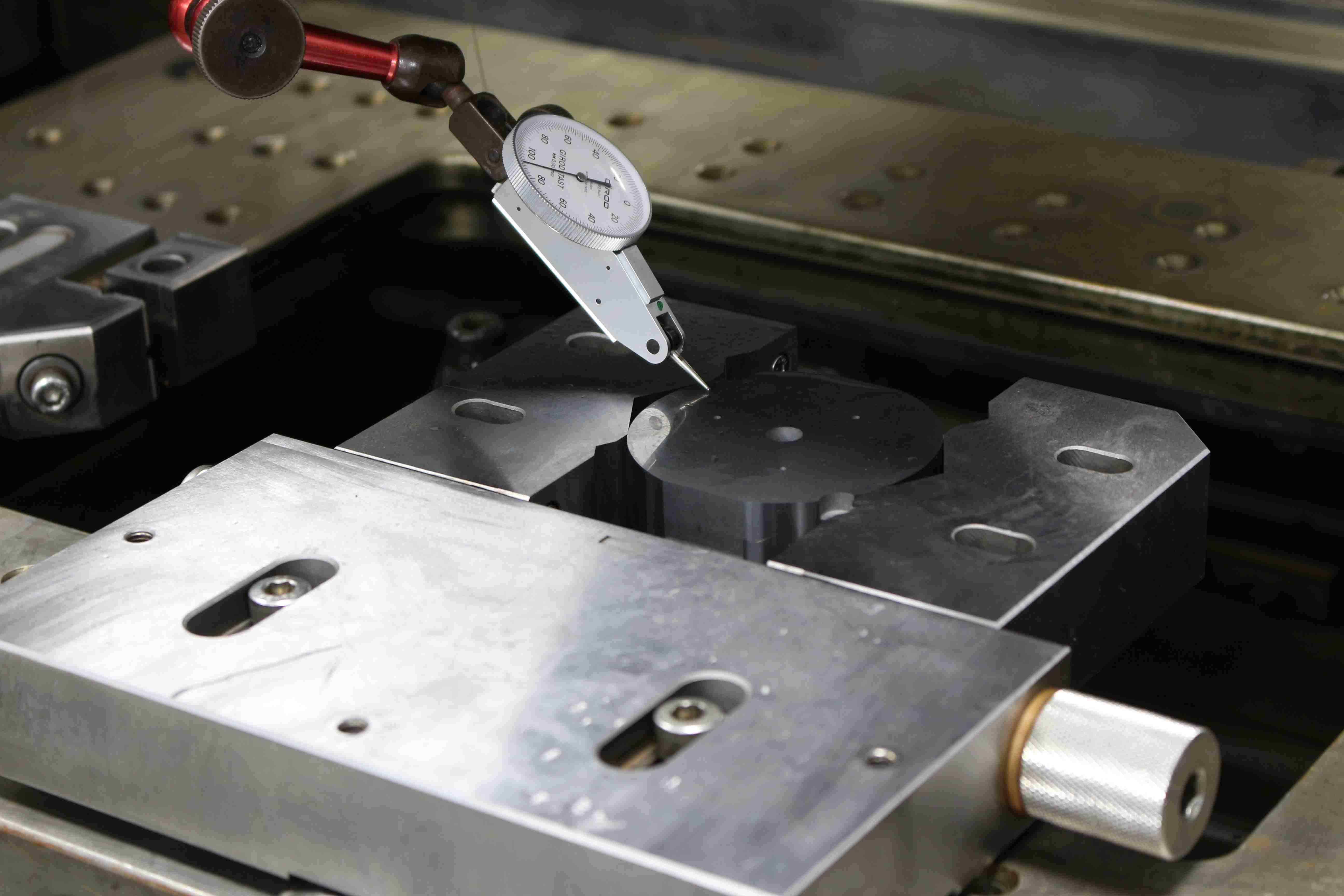

• Laser/dial indicator alignment for workpiece-wire path; pre-clean/deburr workpiece, pre-heat thick carbide (>50mm) to 15–20°C to reduce thermal shock.

Inspection & Error Compensation

• Cool workpiece to room temp before inspection; use CMM/laser micrometers for precision measurement.

• Targeted compensation: increase flushing pressure for taper errors, reduce Ip/Ton for overcutting, add skim pass for poor surface finish.

• Adopt closed-loop compensation for batch production to ensure consistent precision.

Common Precision Issues & Quick Fixes

• Micro-cracks: Shorten Ton, lower Ip, add semi-finishing pass

• Dimensional deviation: Replace worn wire, recalibrate machine, re-align workpiece

• Taper in deep cavities: Boost flushing pressure, use dual nozzles, slow machining speed

• Rough surface (Ra>0.2μm): Optimize pulse settings, clean nozzles, add skim pass

Boosting Wire EDM precision for carbide molds relies on a holistic, detail-focused approach—integrating wire/machine setup, parameter tuning, strict fixturing and data-driven compensation. Mastering these core optimizations enables consistent ±0.002mm or tighter tolerances, maximizing carbide mold performance and lifespan in high-precision manufacturing.

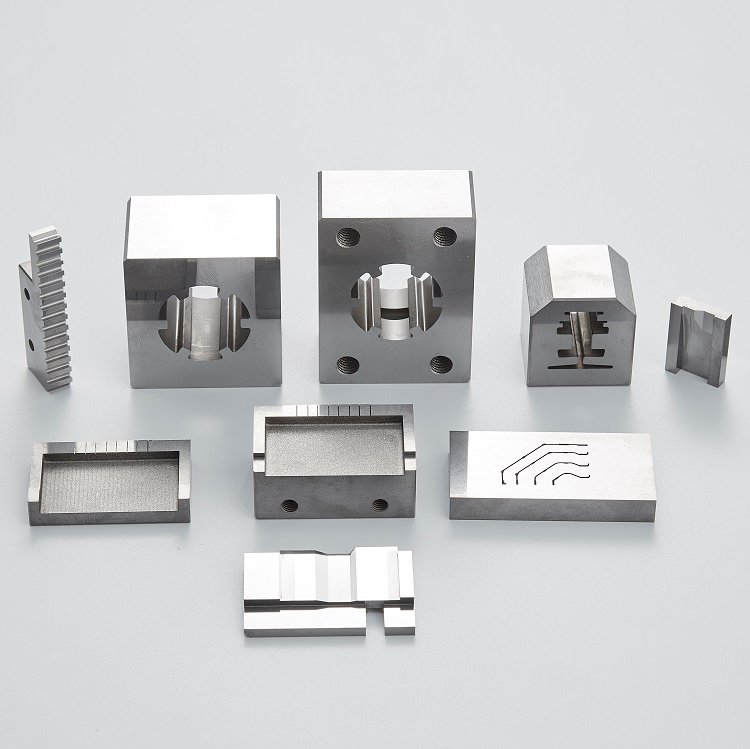

HongYu boasts mature Wire EDM technology for precision carbide mold components, offering customized machining solutions with tight tolerance control for automotive, 3C, die-casting and other industries. We support your high-end mold production with professional technical expertise and reliable quality.
