From AgieCharmilles to Waida: Inside the Workshop That Machines Your Tightest Tolerances

Revealing How Million-Level AgieCharmilles and Waida Equipment Solve the ±0.002mm Precision Challenge for Punches and Inserts

In Dongguan, factories making stamping die components and punch processing can be found everywhere. When sourcing suppliers, many purchasing managers often face the same dilemma: small factories may quote very low prices, but the finished parts often have unstable tolerances. After assembly, the mold may get stuck or have uneven clearance, which eventually shortens the mold’s service life.

Why is it that the same drawing can result in such different performance in terms of precision and die life from one factory to another?

Today, we will not talk in vague terms. Instead, let us show you the “heavy-duty equipment” in our workshop—what exactly these million-level imported machines can bring to your parts.

 Wire EDM Is Not Just “Cutting” — It Is Precision Crafting

Many people think wire EDM is only for “cutting a shape.” But in high-end stamping applications, wire EDM determines the contour accuracy and surface quality of punches.

In Dongguan, many small factories are still using medium-speed wire EDM or entry-level wire EDM machines. The surface finish is poor, wire marks are obvious, and a large amount of manual polishing is required afterward, which can easily cause deformation.

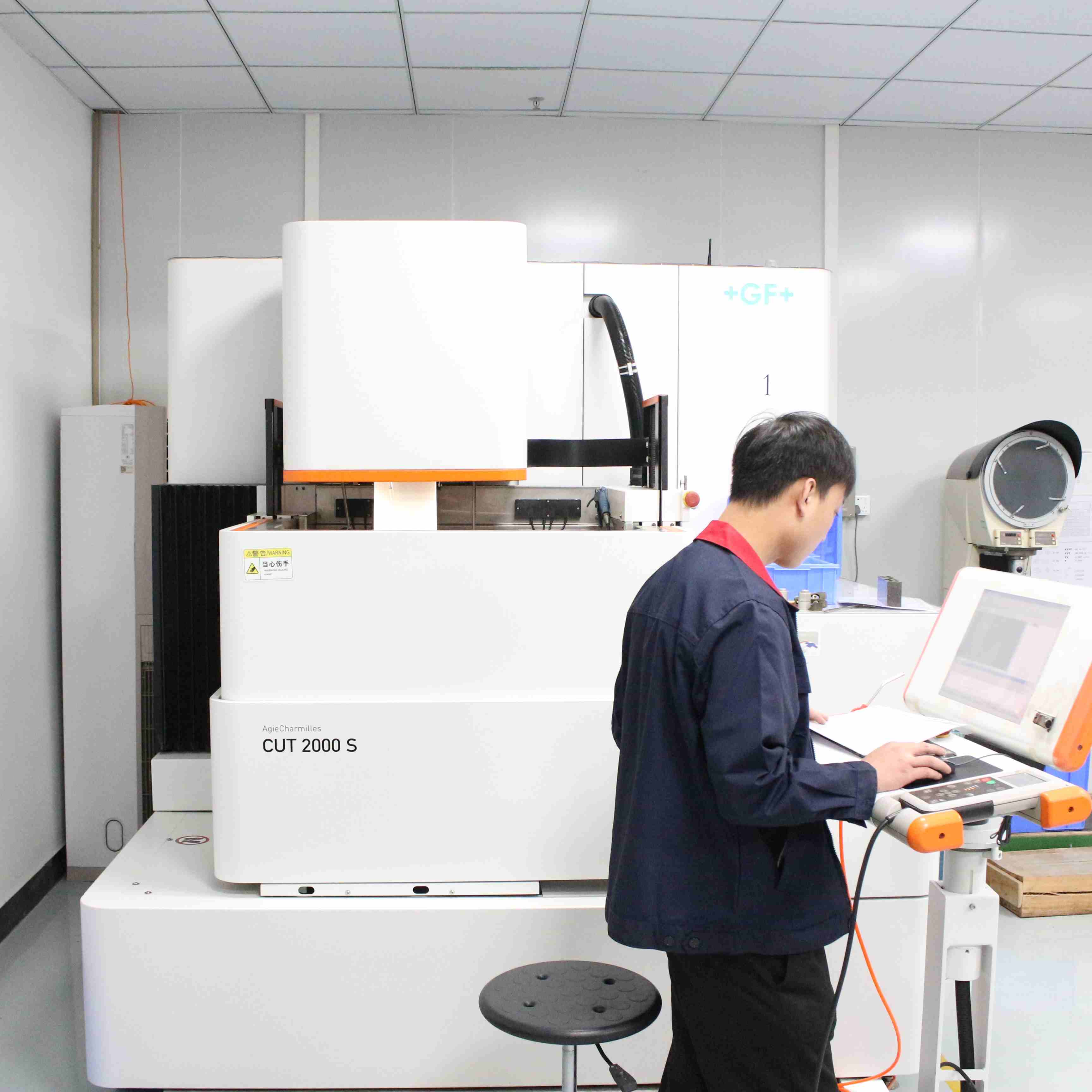

Our workshop is equipped with multiple high-end Swiss GF AgieCharmilles wire EDM machines, including the CUT 2000S, CUT 200Bp, and 240SLp, as well as Japanese Seibu M50 and Sodick AQ-400Ls.

Take the CUT 2000S as an example: its automatic wire threading system and intelligent discharge power supply not only improve machining efficiency by more than 30%, but also deliver mirror-like surface quality.

Precision Assurance

Our wire EDM process can achieve a stable machining accuracy of ±0.002mm. This means that for your drawings with strict tolerances such as ±0.003mm or ±0.005mm, we can not only make them, but also produce them in volume with high consistency, without repeated rework or adjustment.

 Micron-Level Final Correction — Optical Profile Grinding

Is wire EDM the end of the process? For truly precision punches, not yet.

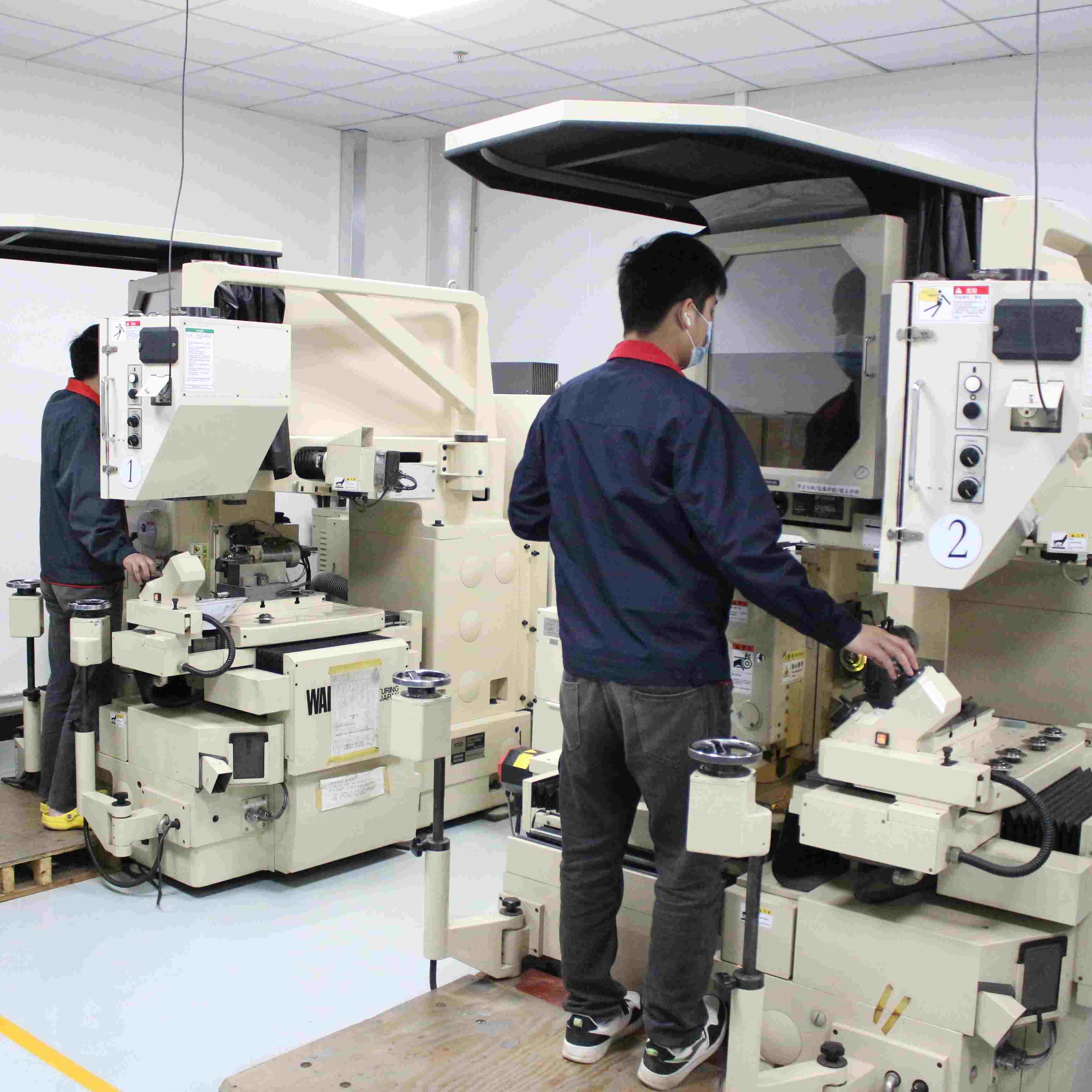

We have introduced 2 Japanese Waida PGX-2500SP CNC optical profile grinding machines, along with 14 precision surface grinders. Waida’s position in optical grinding needs no introduction, and its grinding accuracy can reach 0.001mm.

When punches undergo micro-deformation after heat treatment, or when an extremely sharp cutting edge is required, the PGX-2500SP can perform ultra-precise material removal under real-time optical projection monitoring. This is a technical gap that small factories without high-end grinding equipment—relying only on experienced workers’ “manual feel”—simply cannot overcome.

 Full In-House Process Control — No More Outsourcing Delays

In addition to the above premium equipment, we also have Mitsubishi EA8A EDM machines, WM831 cylindrical grinders, SC-305 centerless grinders, as well as Toyo SMAP polishing machines and Multi LAP lapping machines.

What does this mean?

It means that from wire cutting, EDM, internal/external grinding, to final polishing, we have achieved full in-house process control.

In Dongguan, many small factories need to outsource several processes to different partner workshops when handling complex orders. Once a dimensional issue occurs, everyone starts passing the responsibility around.

With us, the entire process is controlled in-house, so responsibility and quality are clear and traceable.

 Final Words

The investment of millions in equipment is not for show. It is for the moment when you bring us a drawing with extremely tight tolerances or difficult-to-machine materials, and we can confidently say:

“We can make this precision stably.”

If your mold is suffering from short service life, unstable fitting clearance, or repeated trial-and-error adjustments during debugging, feel free to send us your drawings. We do not compete on the lowest price—we compete on who can make your molds last longer and perform more stably.
